Now both with Danish and English text, but for tecnical information look for Danish text.
| |
Philips PM5110 Det var den sidste analoge tonegenerator som Phillips har fremstillet. Data: 1Hz til 100kHz. sinus/firkant. 0 til 2V RMS og uden digital støj da den er analog. _________________________________________________________________________ The last produced RC generator from PHILIPS so it is analog and without digital noise. _________________________________________________________________________ |

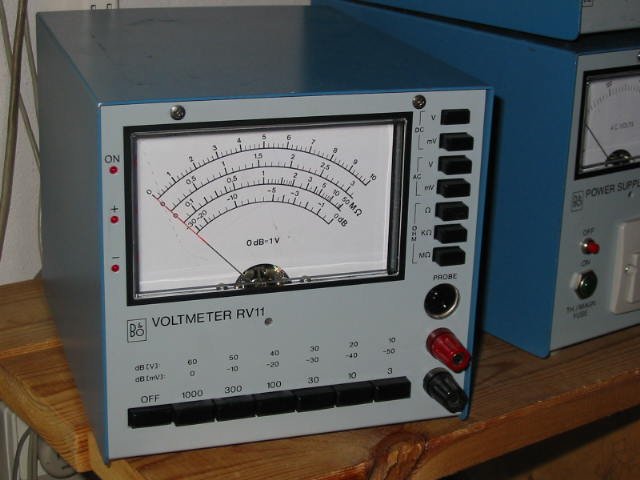

B&O RV11
Et godt gammelt instrument der kan det man har brug for til mine konstruktioner.
Data: 0.2mV til 1000V (både AC og DC)
Modstandsmåling 0.2ohm til 50Mohm
Db måling fra -80dB og til +60dB
___________________________________________________________________________
Good old voltmeter from Denmark made by Bang&Olufsen. I use it a lot because it was the instrument in my education . Lovely and easy to use.
____________________________________________________________________________
Et godt gammelt instrument der kan det man har brug for til mine konstruktioner.
Data: 0.2mV til 1000V (både AC og DC)
Modstandsmåling 0.2ohm til 50Mohm
Db måling fra -80dB og til +60dB
___________________________________________________________________________
Good old voltmeter from Denmark made by Bang&Olufsen. I use it a lot because it was the instrument in my education . Lovely and easy to use.
____________________________________________________________________________
Phillips PM3217
Standard godt kvalitets oscilloskop.
Data: 0Hz til 50MHz og ellers alle de indstillings muligheder man kan ønske sig.
________________________________________________________________________
Good scope that can show all data you need for audio use
_________________________________________________________________________
Standard godt kvalitets oscilloskop.
Data: 0Hz til 50MHz og ellers alle de indstillings muligheder man kan ønske sig.
________________________________________________________________________
Good scope that can show all data you need for audio use
_________________________________________________________________________
___________________________________________________________________________
Complete restored capacity tester. The reason I use it, is because it has a very high test voltage, up to 450 Volt and max capacity of 1000uF.
A must for tube freaks.
BTW: The missing and none original knobs is change to original knobs after this picture was taken.
____________________________________________________________________________
Complete restored capacity tester. The reason I use it, is because it has a very high test voltage, up to 450 Volt and max capacity of 1000uF.
A must for tube freaks.
BTW: The missing and none original knobs is change to original knobs after this picture was taken.
____________________________________________________________________________
LUBKE SR54
Variable transformer gives from 0 til 260 Volt 3A AC.
________________________________________________________
________________________________________________________
STK Emissions tester M-102-1
Fabrikat: Standard telefon og kabelfabrik a/s
En ældre tester fra broderlandet Norge. Kan dog fint bruges til emissions test af
ECC81 og ECC82 desuden kan den bruges til test af EL84 og EL86.
____________________________________________________________________________
An old emisions tester made by "Standard telefon og kabelfabrik a/s" in Norway
It works fine to test ECC81 and ECC82 and it can also make test on EL84 and EL86.
____________________________________________________________________________
2 stk POWER SUPPLY
Produceret af CONTROL DATA. De er begge bygget op med analog kontrol system.
De er begge opjusteret til 6.3Volt og 14 Amp. PR STK.
Så her er der strømstyrke nok til selv den mest krævende forstærker.
__________________________________________________
Produced by CONTROL DATA. They are both with analog control system and ajusted to 6.3Volt and 14Amps. So here are power enough to supply even the most hungry amplifier
____________________________________________________________________________
Philips PE 1542
PSU med 2 x 0 -20Volt /1Amp og 1 x 0 - 7Volt /3 Amp
___________________________________________________________________________
Fabrikat: Standard telefon og kabelfabrik a/s
En ældre tester fra broderlandet Norge. Kan dog fint bruges til emissions test af
ECC81 og ECC82 desuden kan den bruges til test af EL84 og EL86.
____________________________________________________________________________
An old emisions tester made by "Standard telefon og kabelfabrik a/s" in Norway
It works fine to test ECC81 and ECC82 and it can also make test on EL84 and EL86.
____________________________________________________________________________
2 stk POWER SUPPLY
Produceret af CONTROL DATA. De er begge bygget op med analog kontrol system.
De er begge opjusteret til 6.3Volt og 14 Amp. PR STK.
Så her er der strømstyrke nok til selv den mest krævende forstærker.
__________________________________________________
Produced by CONTROL DATA. They are both with analog control system and ajusted to 6.3Volt and 14Amps. So here are power enough to supply even the most hungry amplifier
____________________________________________________________________________
Philips PE 1542
PSU med 2 x 0 -20Volt /1Amp og 1 x 0 - 7Volt /3 Amp
___________________________________________________________________________
